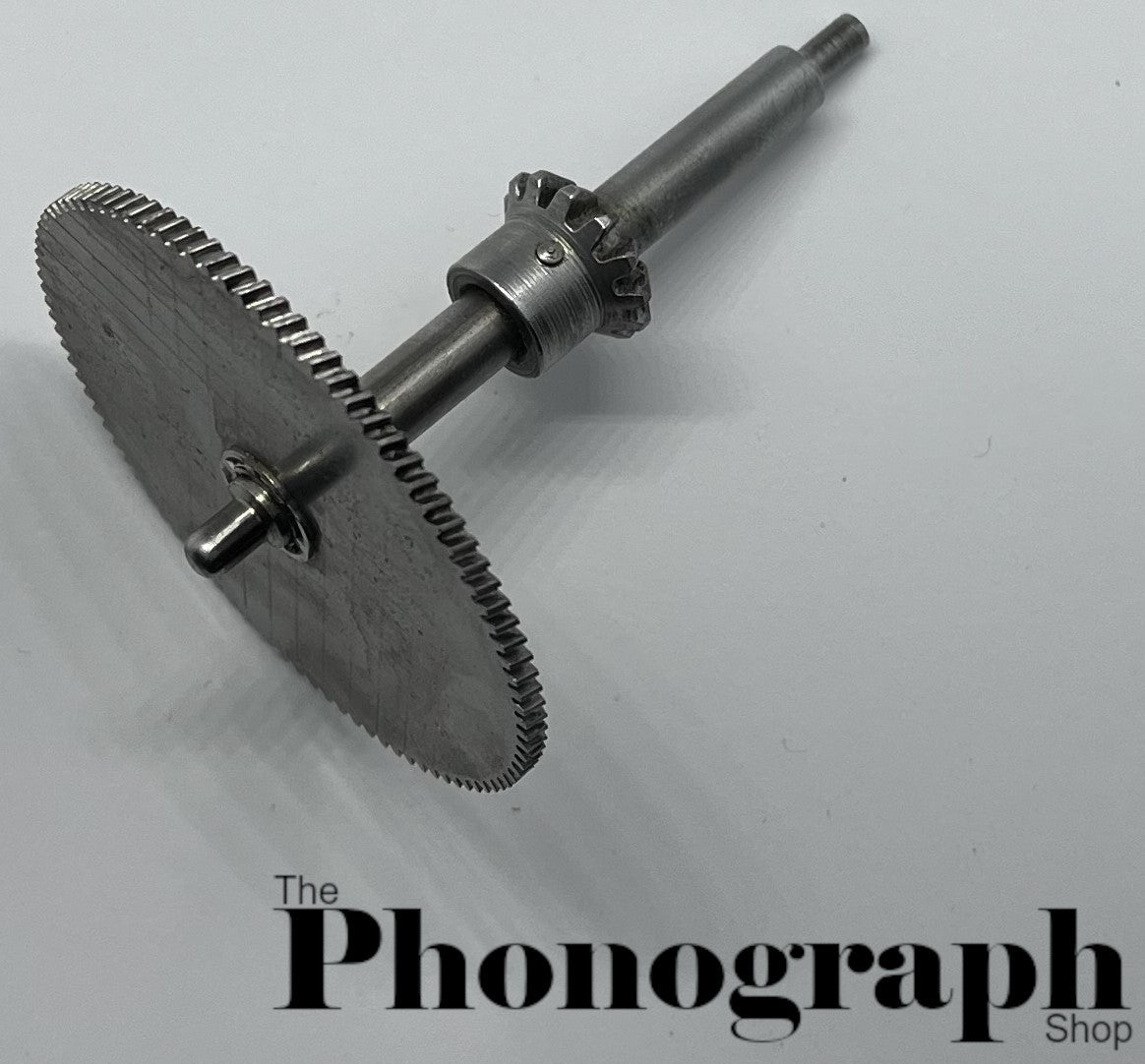

"Certified Original" SAAL Intermediate Gear Assembled - Thin (J411PF)
"Certified Original Part"
MOV-INT-GR-ASM-SAL-J411PF-OThese are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean for a no hassle installation.
Couldn't load pickup availability
"Certified Original" SAAL Intermediate Gear Assembled for:
These are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean and polish for a no hassle installation.
Type EE
Others
Fitted with 13 Tooth Pinion
Dimensions
Gear
Diameter - 2 5/32"
Thickness - ▽3/32"
ID - 1/4"
Number of Teeth - 96
Shaft
Length - 2 27/32"
Diameter - 1/4"
Length of Bearings - 1/4"
Diameter of Bearings - 1/8"
Pinion
Diameter -5/8"
Length - 29/64"
ID - 1/4"
Number of Teeth - 13
Pin
Length - 1/2"
Diameter - 3/32"
Tapered
