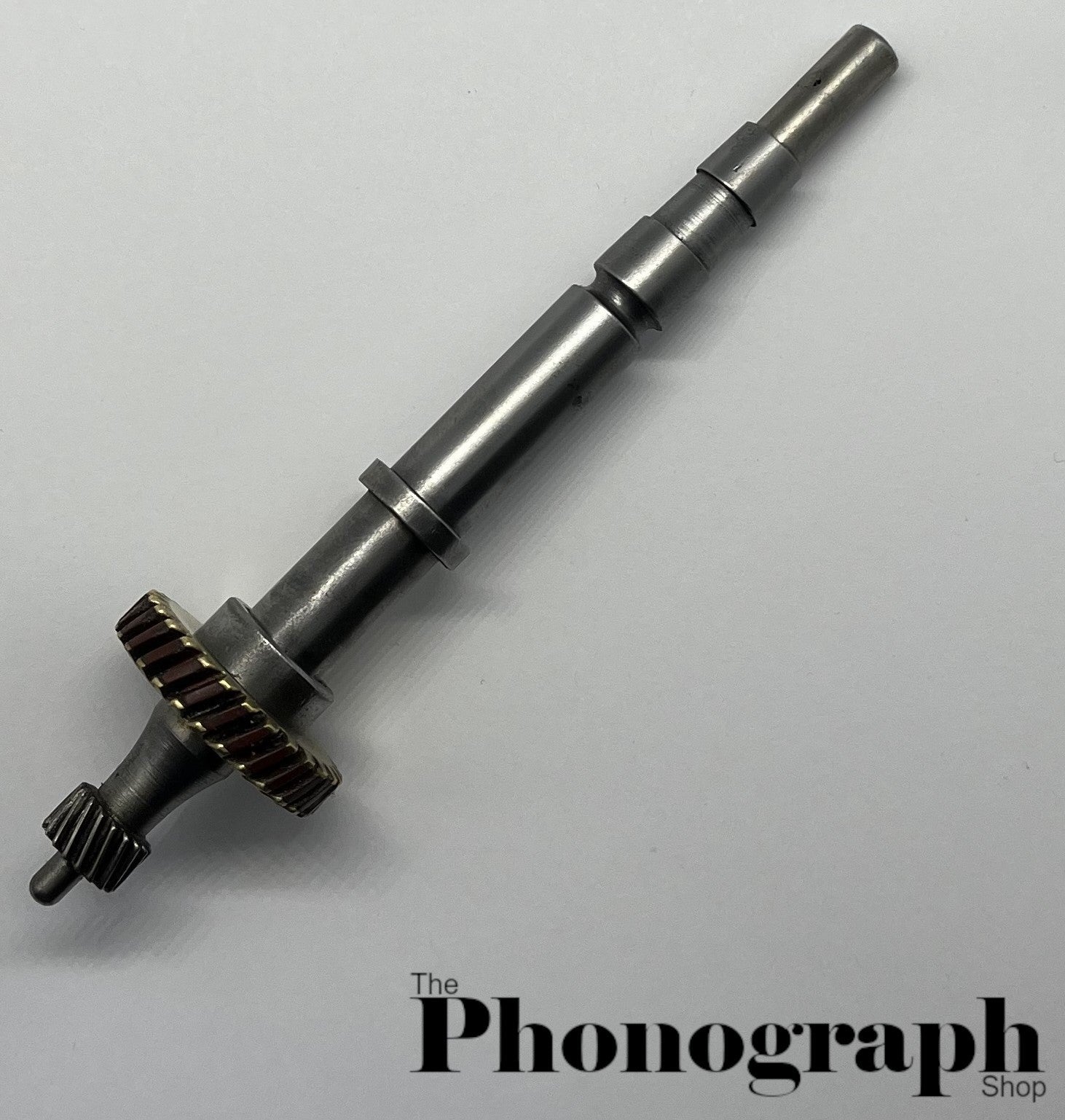

"Certified Original" SAAL Turntable Spindle Assembled - Thin

"Certified Original" SAAL Turntable Spindle Assembled - Thin for:

These are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean and polish for a no hassle installation.

Type AA
Type CC-N.A.
Type DD
Type DD-N.A.
Type EE
Others

Dimensions

Overall Length - ▽5 11/64" (This varies up to about 3/16" due to additional length of the record receiving portion)

Fiber Gear

Thickness - 1/4"
Diameter - 1 5/32"
Number of Teeth - 28
Diameter of Collar - 5/8"
Thickness of Collar - 3/16"
ID - 7/16"

Pinion

Diameter - ▽13/16"
Length - 1/4"
ID - ▽9/64"
Number of Teeth - 17

Stop Collar

Diameter - 9/16"
Thickness - 1/8"
ID - 27/64"
Width of Slot - 1/16"
