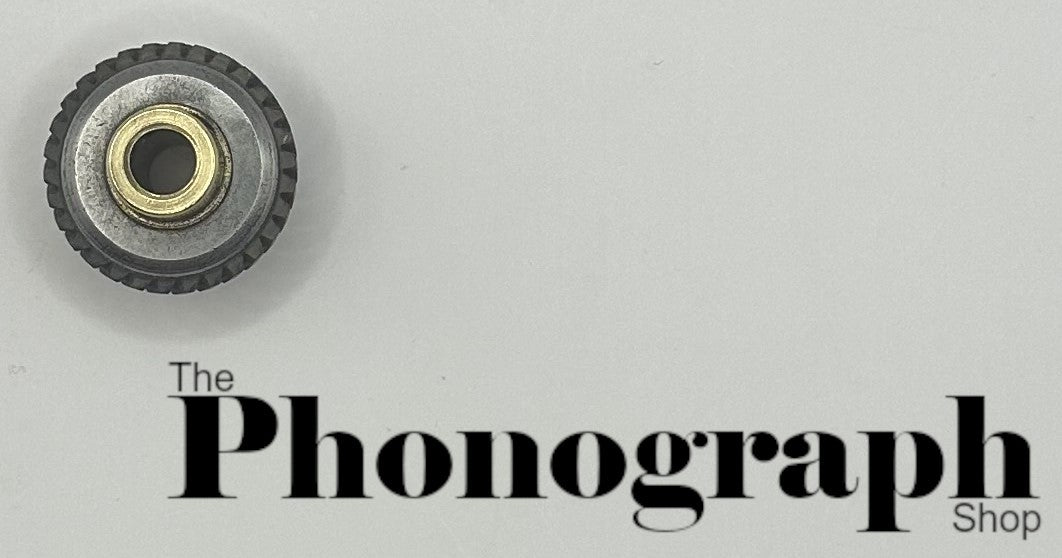

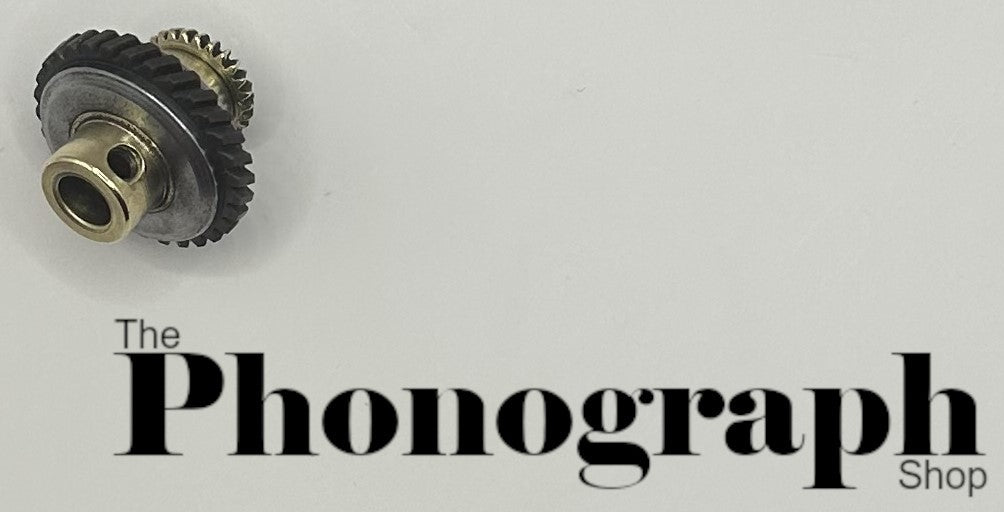

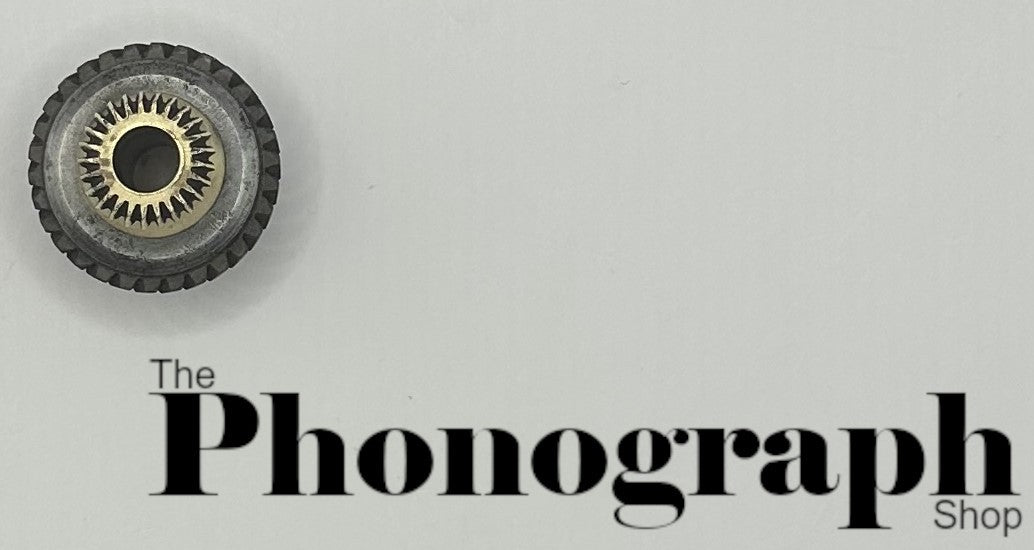

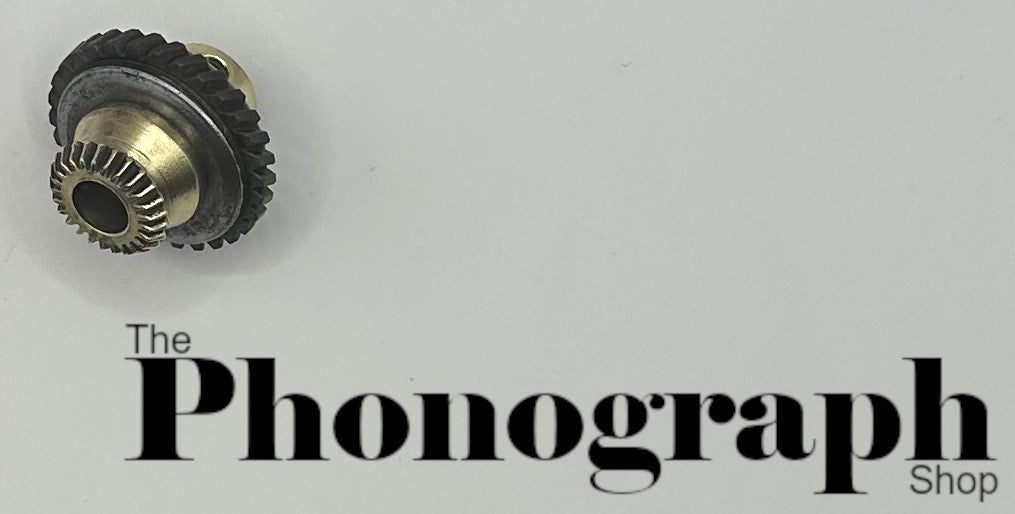

Columbia Grafonola Bevel Pinion (13510PF) "Certified Original"
"Certified Original Item"
TBL-BVL-PNN-COL-13510PF-O
Regular price
$29.99 USD
Regular price
Sale price
$29.99 USD
Unit price
per
These are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean for a no hassle installation.
Couldn't load pickup availability
Bevel Pinion for:
These are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean for a no hassle installation.
Columbia Grafonola
Dimensions
Length - 1 3/32"
ID - 5/16"
Diameter of the Fiber Gear - 1 1/4"
Thickness of the Fiber Gear - 5/32"
Number of Teeth on Fiber Gear - 30
Diameter of Bevel Pinion - 21/32"
Number of Teeth on Bevel Pinion - 25
Diameter of Bushing - 17/32"
Length of Bushing = 5/16"
Thickness of Bushing - 7/64"
Diameter of Set Screw Hole - 9/64"
Material - Brass, Steel, Fiber
These are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean for a no hassle installation.
Columbia Grafonola
Dimensions
Length - 1 3/32"
ID - 5/16"
Diameter of the Fiber Gear - 1 1/4"
Thickness of the Fiber Gear - 5/32"
Number of Teeth on Fiber Gear - 30
Diameter of Bevel Pinion - 21/32"
Number of Teeth on Bevel Pinion - 25
Diameter of Bushing - 17/32"
Length of Bushing = 5/16"
Thickness of Bushing - 7/64"
Diameter of Set Screw Hole - 9/64"
Material - Brass, Steel, Fiber
