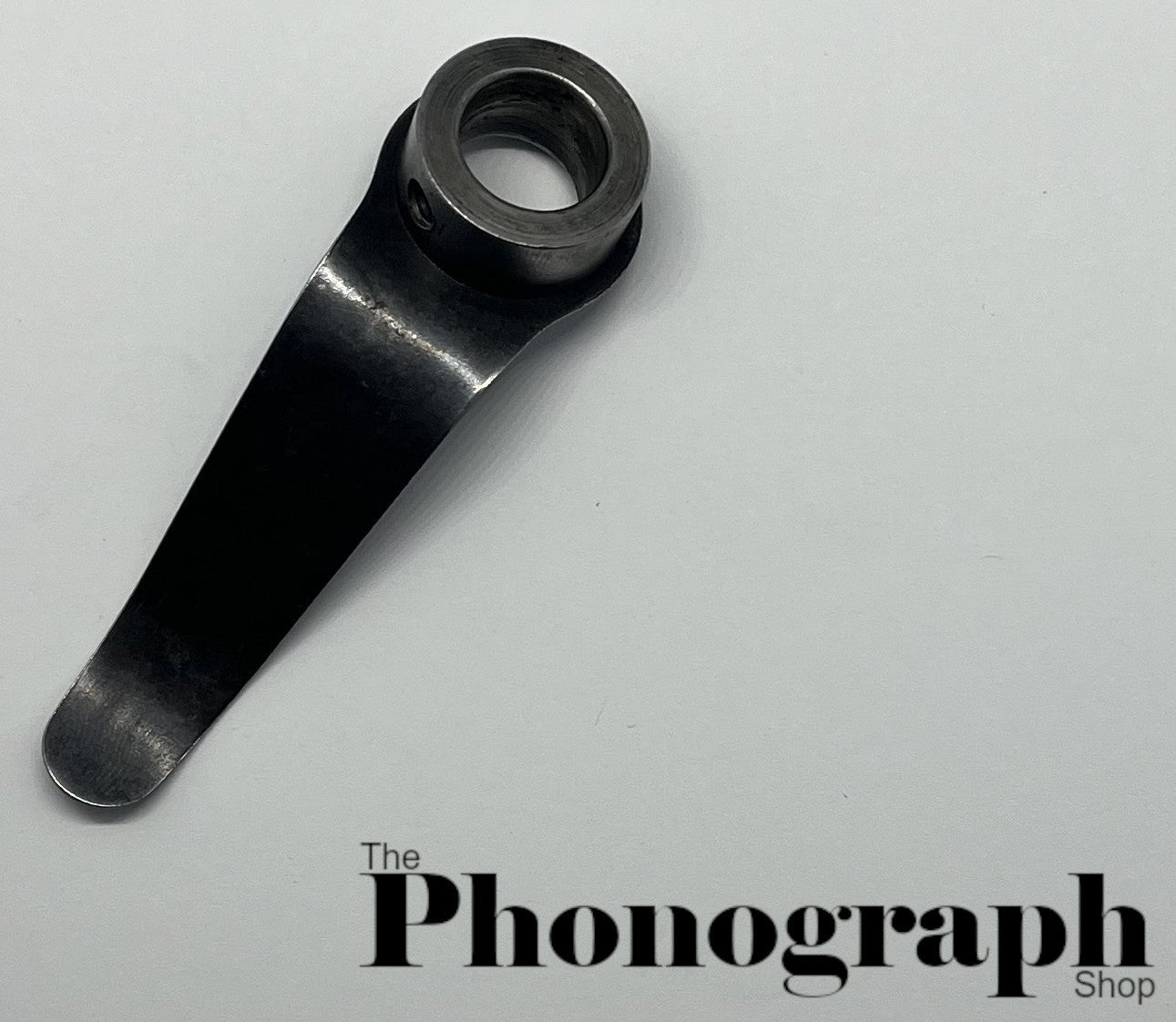

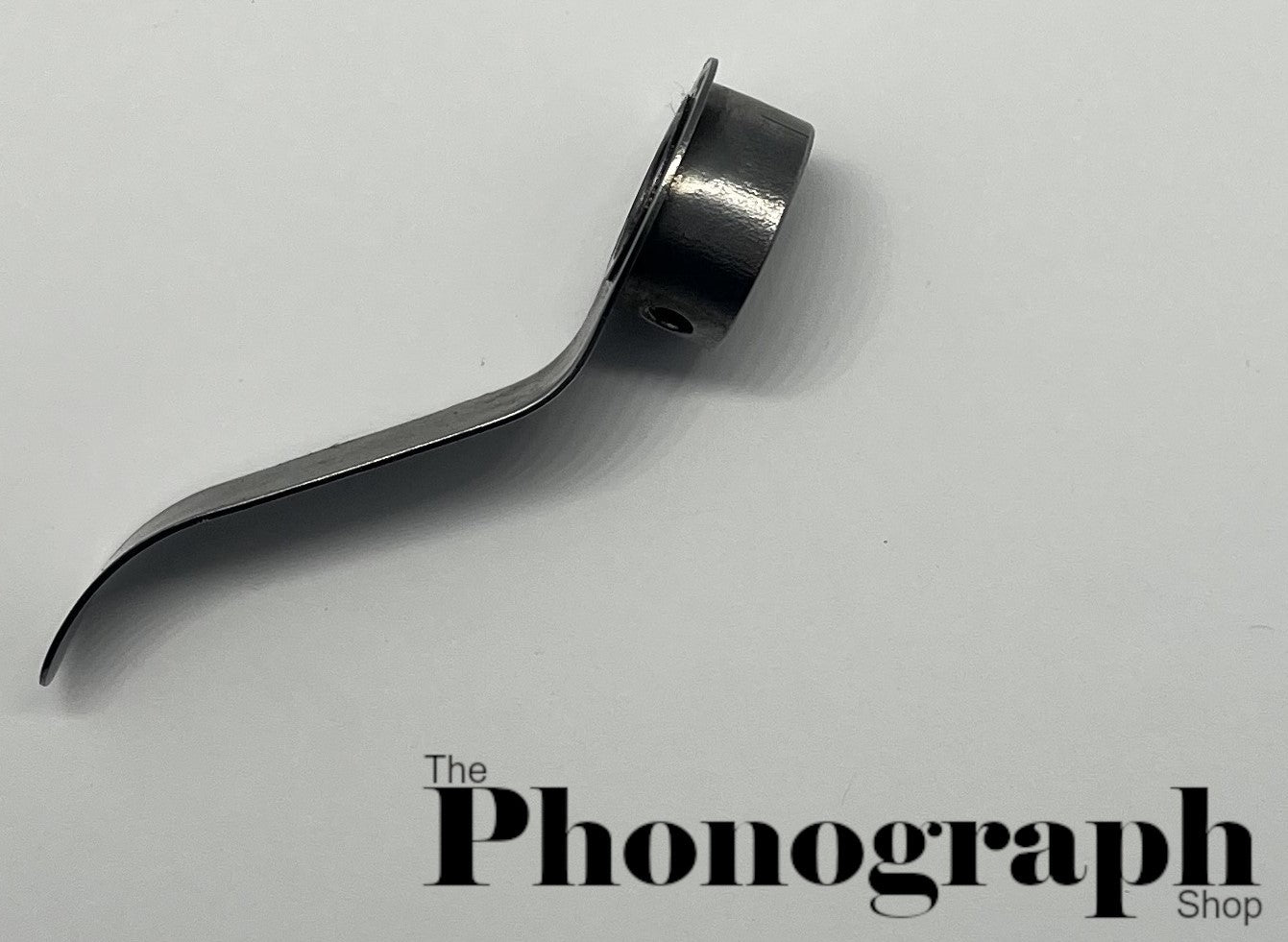

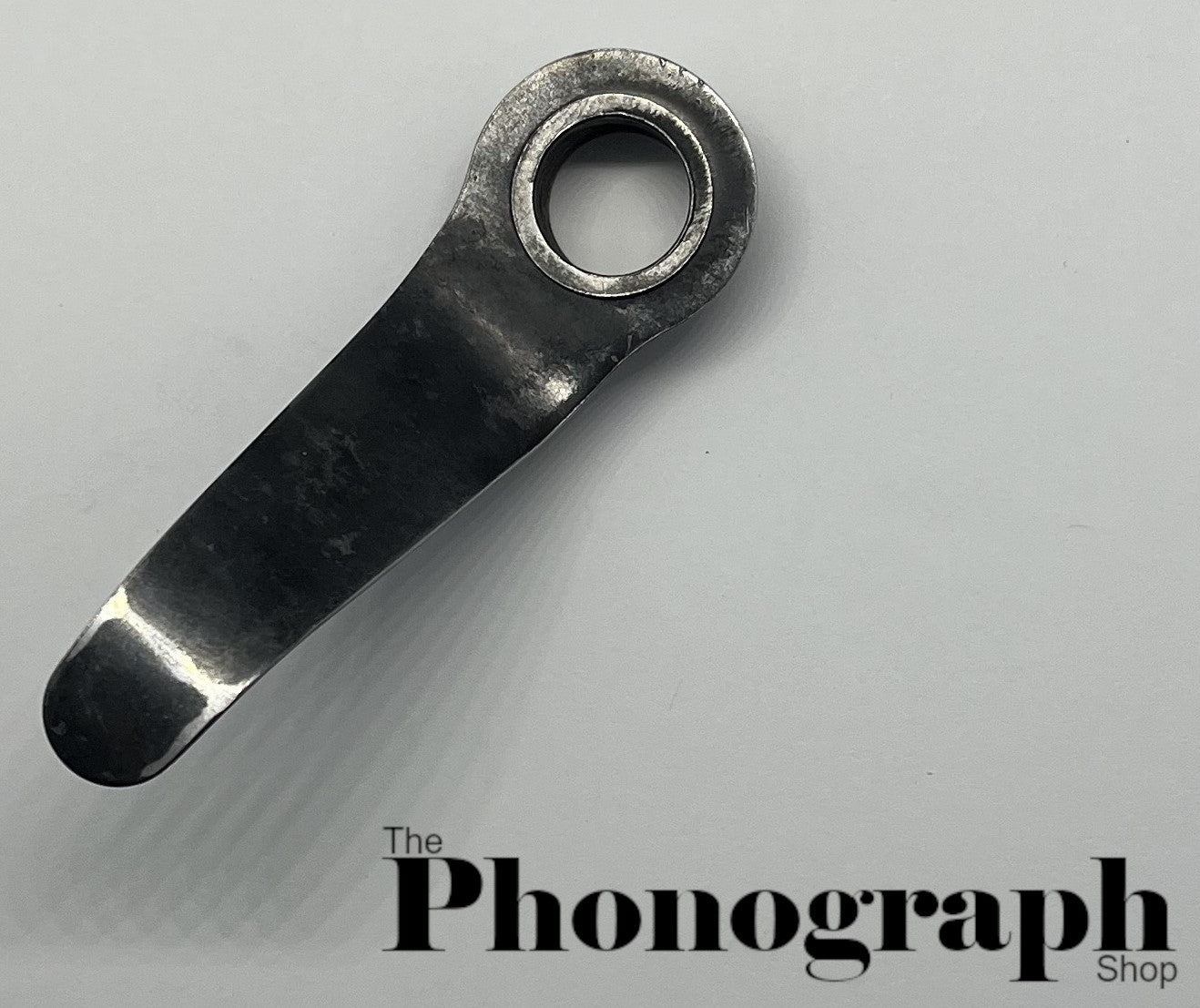

Edison Diamond Disc Horn Friction Spring with Holder (42179PF) "Certified Original"

Horn Friction Spring with Holder for:

These are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean and polish for a no hassle installation.

D-25
A-100
B-510
C-150
B-200
C-200
B-250
C-250
W-250
B-275
B-375
B-450
C-450
B-19
C-19
H-19
J-19
L-19
S-19
SI-19
W-19
IU-19
Army/Navy
Others

Dimensions

Length of Spring Overall - 2 3/4"
Width of Spring Small End - ~15/32"
Width of Spring Large End - ~15/16"
Thickness of Spring - 0.03"
Diameter of Holder - 13/16"
ID of Holder - 1/2"
Height of Holder - 23/64"
Threads off Set Screw Hole - 8-32
Material - Steel

Takes:

• Edison Diamond Disc Horn Friction Spring Set Screw (17804PF)
