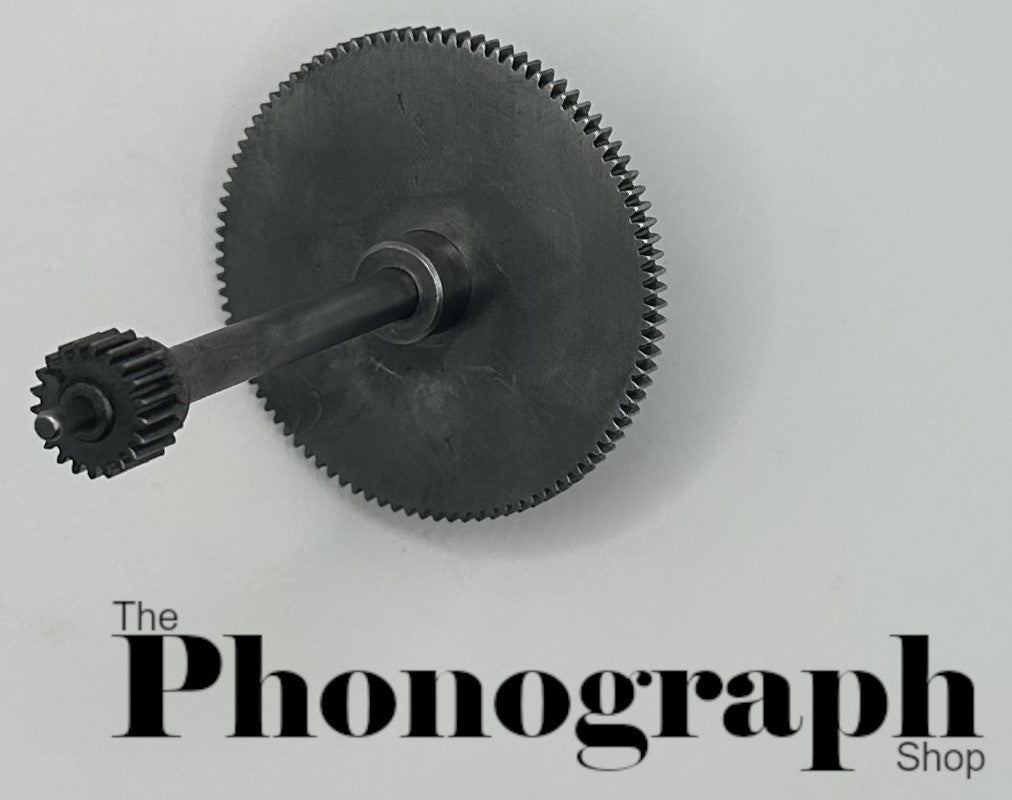

Edison Home First Shaft with Pinion & Second Gear (2082PF-O)

MOV-1ST-SHFT-ASM-EDN-2082PF-O Certified Original

$24.99 USD
$24.99 USD
Sale Sold out

First Shaft with Pinion & Second Gear for:

  • Home Model A
  • Home Model B
  • Home Model C
  • Home Model D
  • Home Model E
  • Home Model F

Dimensions

  • Length of Shaft: 3 15/16"
  • Diameter of Shaft: 1/4"
  • Length of Ends: 1/4"
  • Diameter of Ends: 1/8"
  • Diameter of Gear: ~2 27/64"
  • Thickness of Gear: 5/32"
  • Length of Gear Hub: ~5/16"
  • Diameter of Gear Hub: 1/2"
  • Threads of Gear Hub Set Screw Hole: ?
  • Diameter of Pinion: 9/26"
  • Thickness of Pinion: 9/32"
  • Length of Pinion Hub: 7/64"
  • Diameter of Pinion Hub: 7/16"
  • Material: Steel
