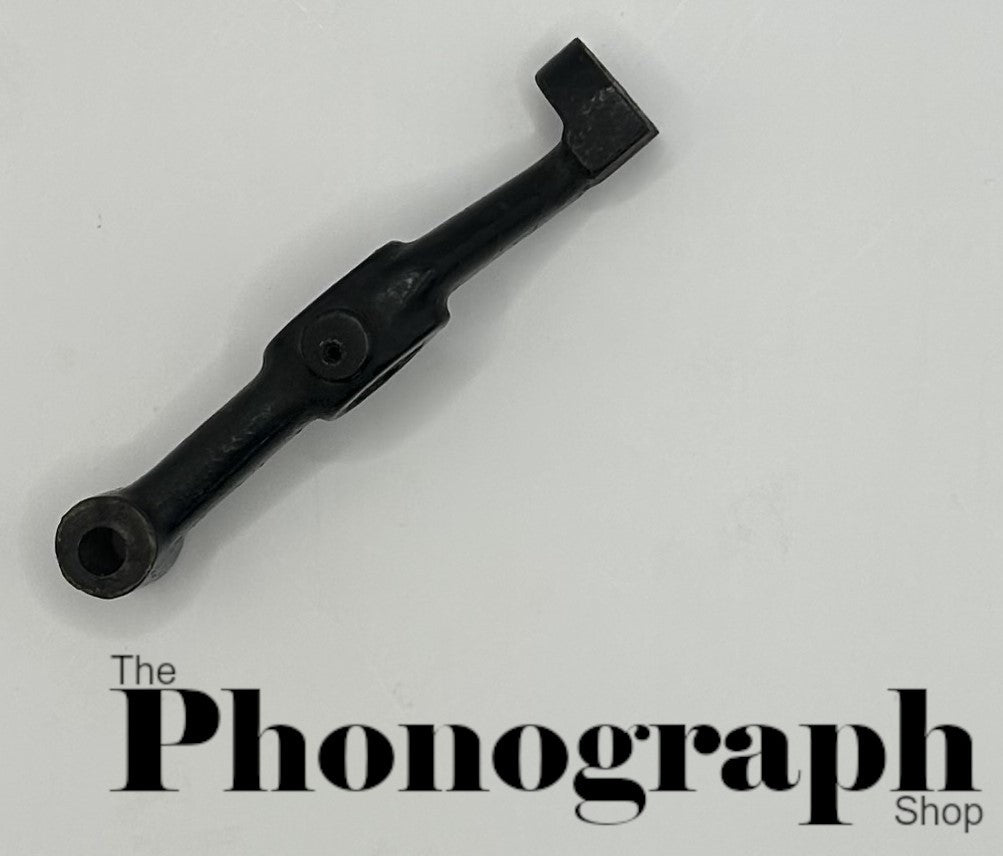

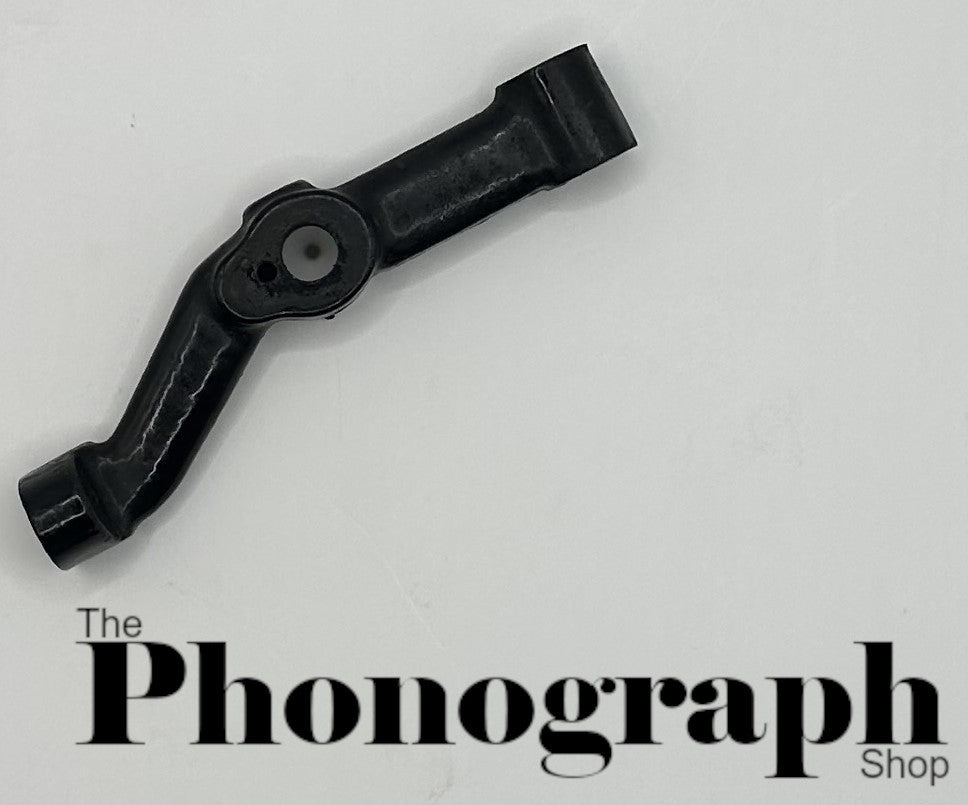

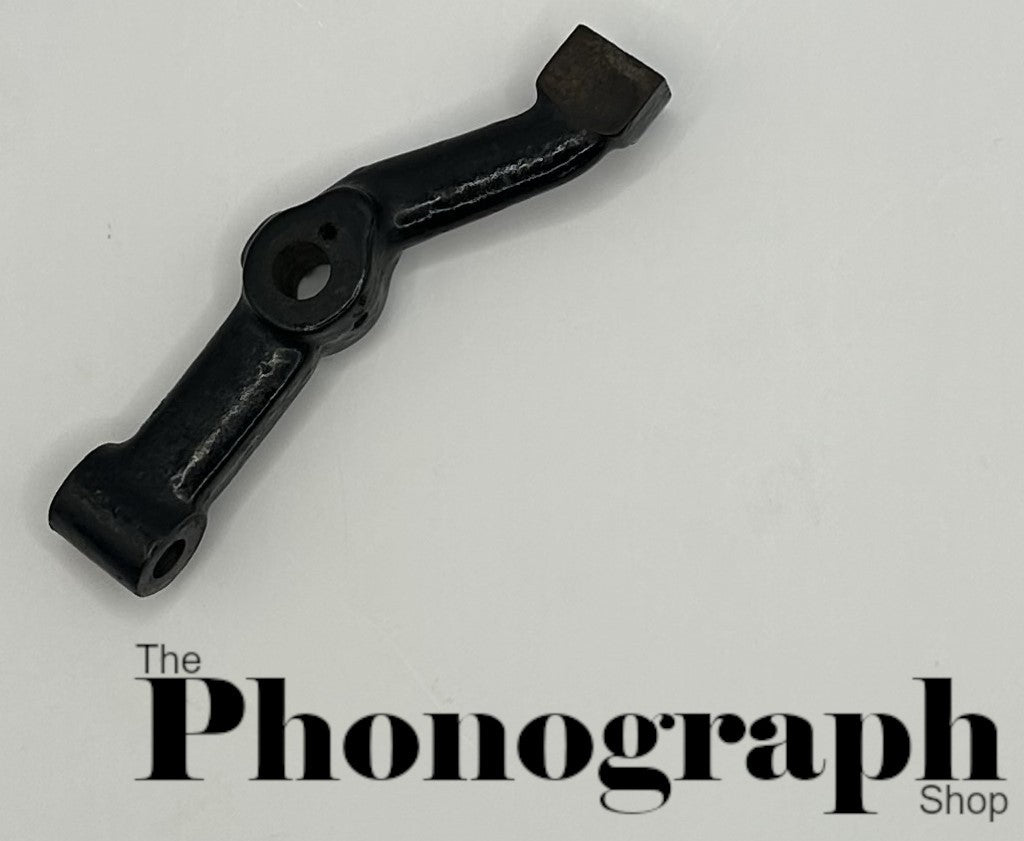

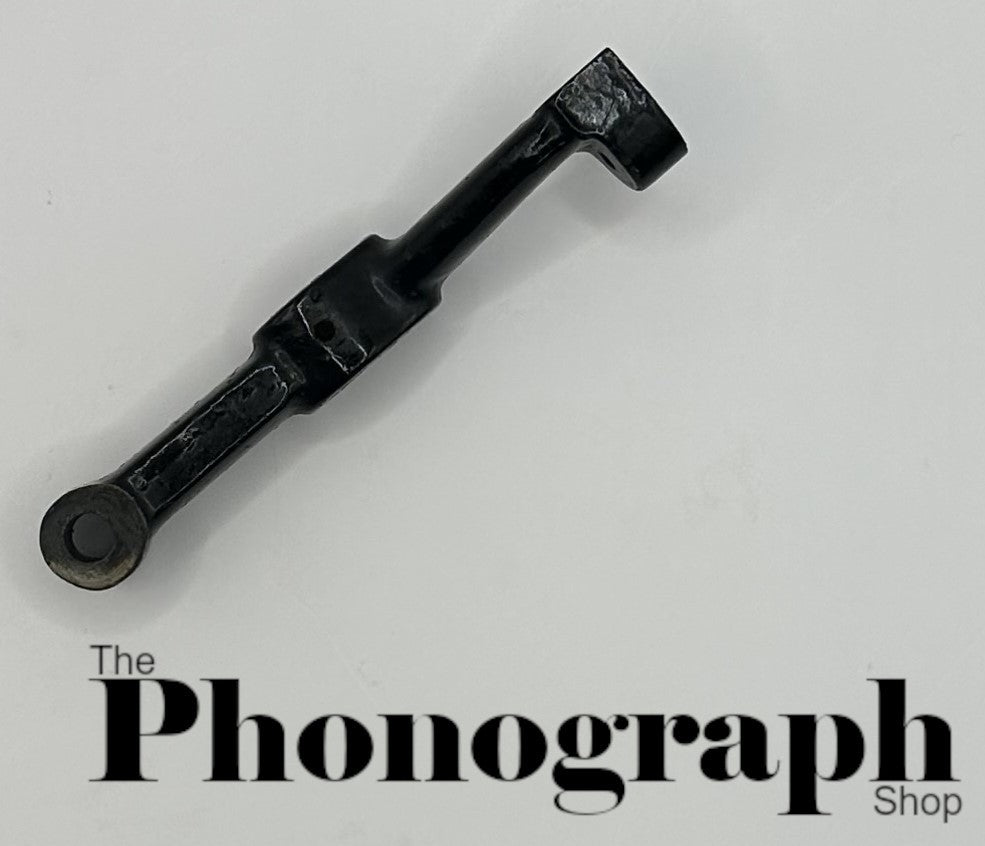

Edison Standard A/B Swinging Arm (1506BJ) "Certified Original"

Swinging Arm for:

These are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean and polish for a no hassle installation.

Good Japanning on these.

• Standard Model A
• Excluding Suitcase
• Models with 1 1/8" tall Locking Spring Strike
• Standard Model B

Dimensions

Length - 3 13/16"
Width - 11/16"
Height - ~1 1/8"
Diameter of Swinging Arm Center Hole - 5/16"
Diameter of Swinging Arm Stud Hole - 1/4"
Threads of Swinging Arm Stop Screw Hole 5-40
Threads of Locking Spring Knob Hole - 5-40
Threads of Swinging Arm Center Set Screw Hole - 5-40
Material - Black Japanned Cast Iron

Takes:

• Edison Round Head Set Screw 5-40 (2794BL) "Certified Original"
• Edison Standard A/B Swinging Arm Center (1507PF) "Certified Original"
• Edison Standard A/B Swinging Arm Center (1507PF)
• Edison Standard A/B Swinging Arm Locking Spring (1510BL) "Certified Original"
• Edison Standard A/B Swinging Arm Lock Spring Knob (1511NG) "Certified Original"
• Edison Standard A/B Swinging Arm Lock Spring Knob (1511PF)
• Edison Stop Screw (1711BL) "Certified Original"
