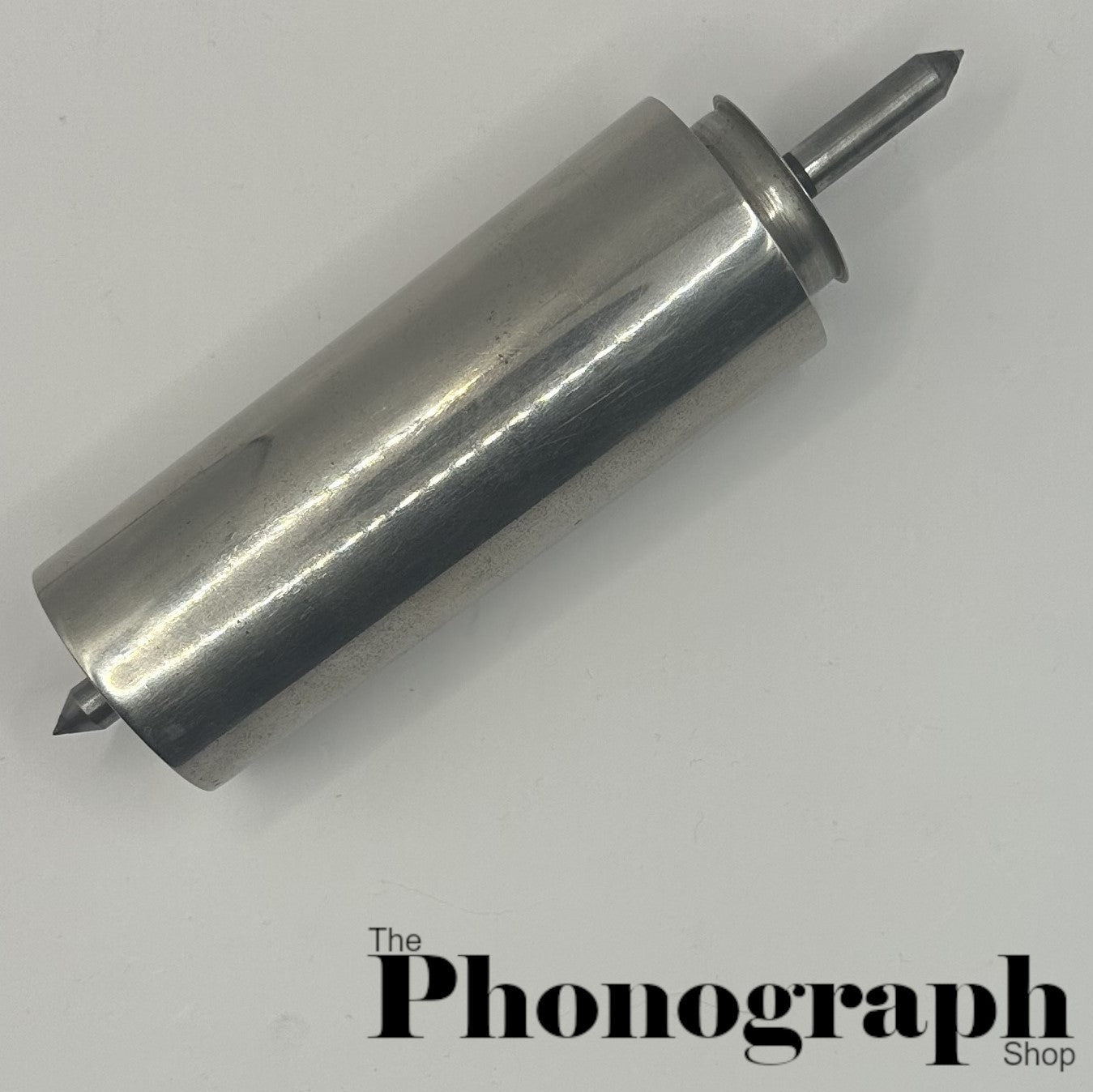

Edison Standard Cylinder [Mandrel] Assembled (1543NG) "Certified Original"
"Certified Original Part"
TOP-CYL-ASM-EDN-1543NG-O
Regular price
$29.99 USD
Regular price
Sale price
$29.99 USD
Unit price
per
These are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean for a no hassle installation.
Cylinder [Mandrel] Assembled for:
These are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean and for a no hassle installation.
Standard Model A
Standard Model B
Dimensions
Length of Mandrel - 4 5/8"
Diameter of Mandrel Large End - 1 53/64"
Diameter of Mandrel Small End - 1 11/16"
Diameter of Pulley - 1 23/64"
Diameter of Pulley Recess - 1 1/4"
Width of Pulley - 11/32"
Width of Pulley Recess - 9/32"
Diameter of Shaft - 5/16"
Length of Shaft Long End - ~1 23/64"
Length of Shaft Short End - ~1/2"
Material - Steel and Nickeled Brass
