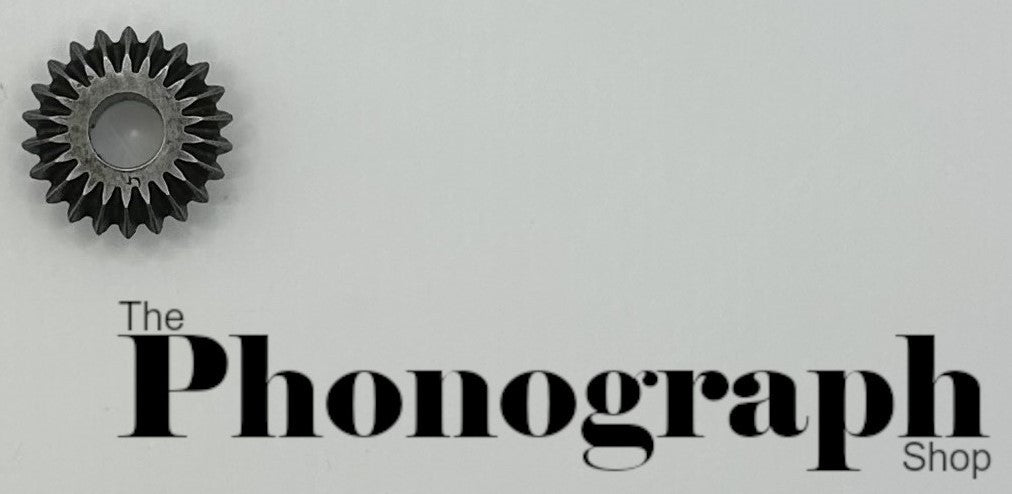

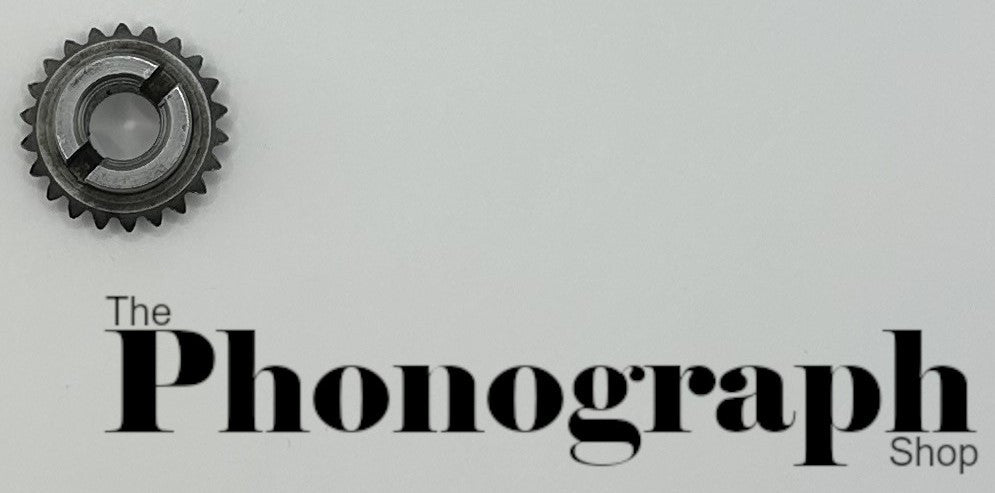

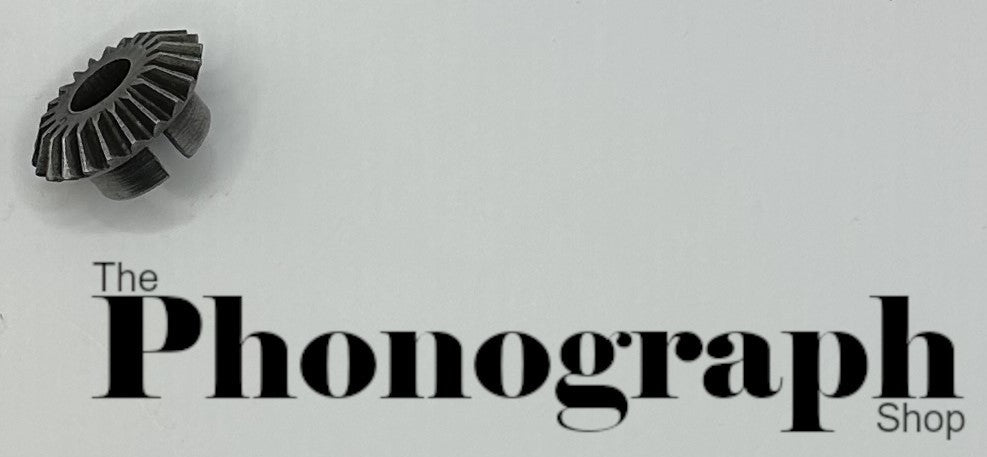

Heineman Intermediate Bevel Gear for Motor #77 (GL508) "Certified Original"
"Certified Original Part"
MOV-INT-BVL-GR-HMN-GL508-O
Regular price
$14.99 USD
Regular price
Sale price
$14.99 USD
Unit price
per
These are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean for a no hassle installation.
Couldn't load pickup availability
Intermediate Bevel Gera for:
#77 (New Type)
Dimensions
Diameter of Gear - 1 1/6"
Number of Teeth - 22
Diameter of Collar - 11/16"
Width of Collar - 1/4"
Width of Pin Slots - 1/8"
Inside Diameter - 3/8"
Material - Steel
Used with:
