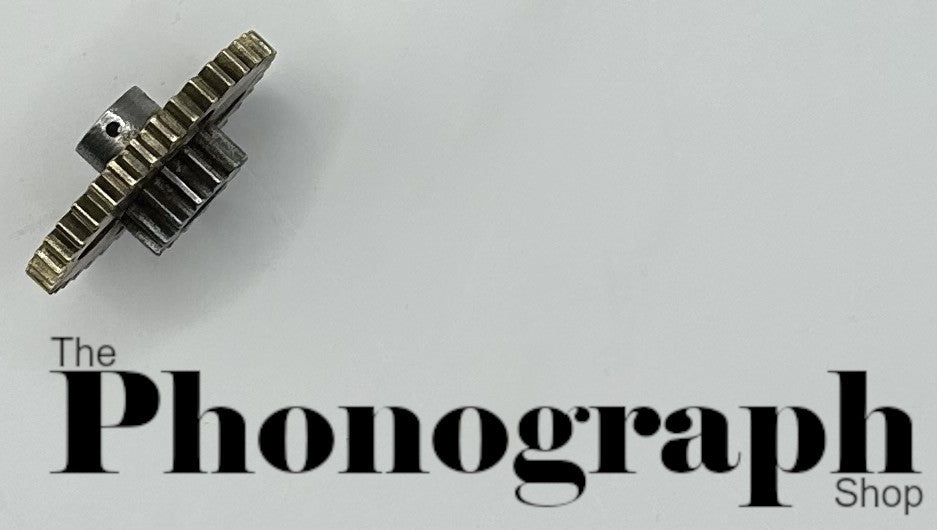

Columbia Grafonola First Intermediate Gear Assembled (5106APF-O)

"Certified Original Item"

MOV-INT-GR-COL-5106APF-O

$17.99 USD
$17.99 USD
Sale Sold out

These are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean for a no hassle installation.

First Intermediate Gear for:

  • Columbia Grafonola

Dimensions

  • Diameter of Gear: 1 9/16"
  • Thickness of Gear: 5/32"
  • Number of Teeth on Gear: 36
  • Diameter of Pinion: 21/32"
  • Thickness of Pinion: 1/4"
  • Number of Teeth on Pinion: 14
  • Diameter of Sleeve: 13/32"
  • Length of Sleeve: 1/4"
  • Inside Diameter: 5/16"
  • Diameter of Holes in Collar: 1/16"
  • Material:  Brass and Steel

Installation Tip:

  • Best to use a press to install.
    • Arbor press works well.
