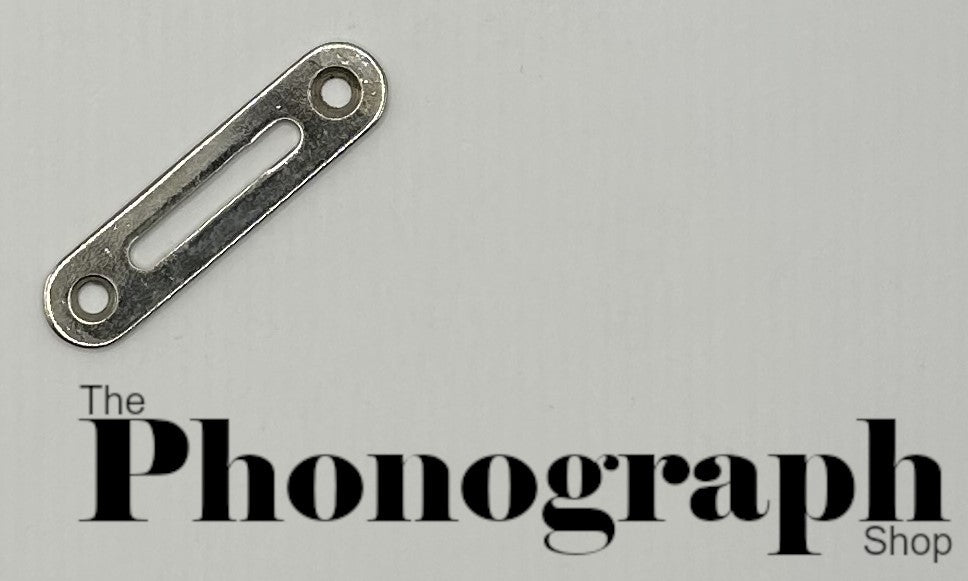

Edison Cabinet Guide Plate

Edison Cabinet Guide Plate for:

Standard Model D
Home Model D
Others

Takes Wood Screw (Requires 2): GEN-WD-SC-100-R or GEN-WD-SC-100-O

Dimensions

Length - ▽2 1/8"
Width - 33/64"
Thickness - 5/64"
Length of Latch Cut - 1 5/64"
Width of Latch Cut - 5/32"
Screw Hole Size - #4 (Counter Sunk)
