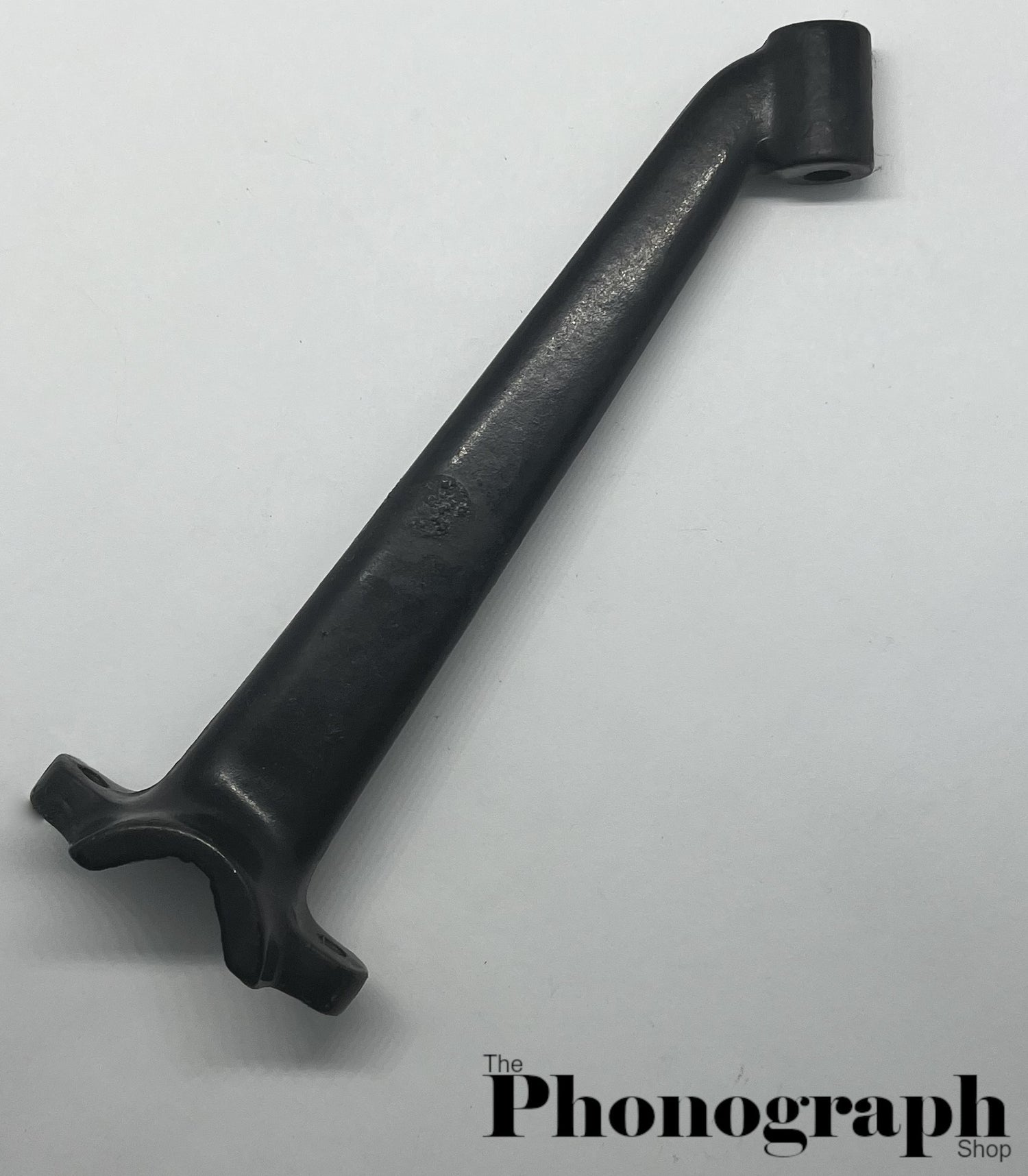

Edison Diamond Disc Tone Modulator Arm "Certified Original"

Tone Modulator Arm for:

These are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean and polish for a no hassle installation.

D-25
A-100
B-510
C-150
B-200
C-200
B-250
C-250
W-250
B-275
B-375
B-450
C-450
B-19
C-19
H-19
J-19
L-19
S-19
SI-19
W-19
IU-19
Army/Navy
Others

Dimensions

Length Overall - 5 25/32"
Length of Clamp End - 1 63/64"
Width of Clamp End - 1 9/64"
Diameter of Clamp Screw Holes - 11/64"
Threads of Clamp Holes - 10-32
Length of Wire Holder - 49/64"
Diameter of Wire Holder - 17/32"
ID of Wire Holder - 15/64"
Diameter of Wire Holder Set Screw Hole - 7/64"
Threads of Wire Holder Set Screw Hole - 6-32
Material - Black Japanned Cast Iron

Used With:

• Edison Diamond Disc Tone Modulator Arm Clamp "Certified Original"

Takes:

• Edison Diamond Disc Tone Modulator Arm Set Screw "Certified Original"
• Edison Diamond Disc Tone Modulator Arm Clamp Screw "Certified Original"
