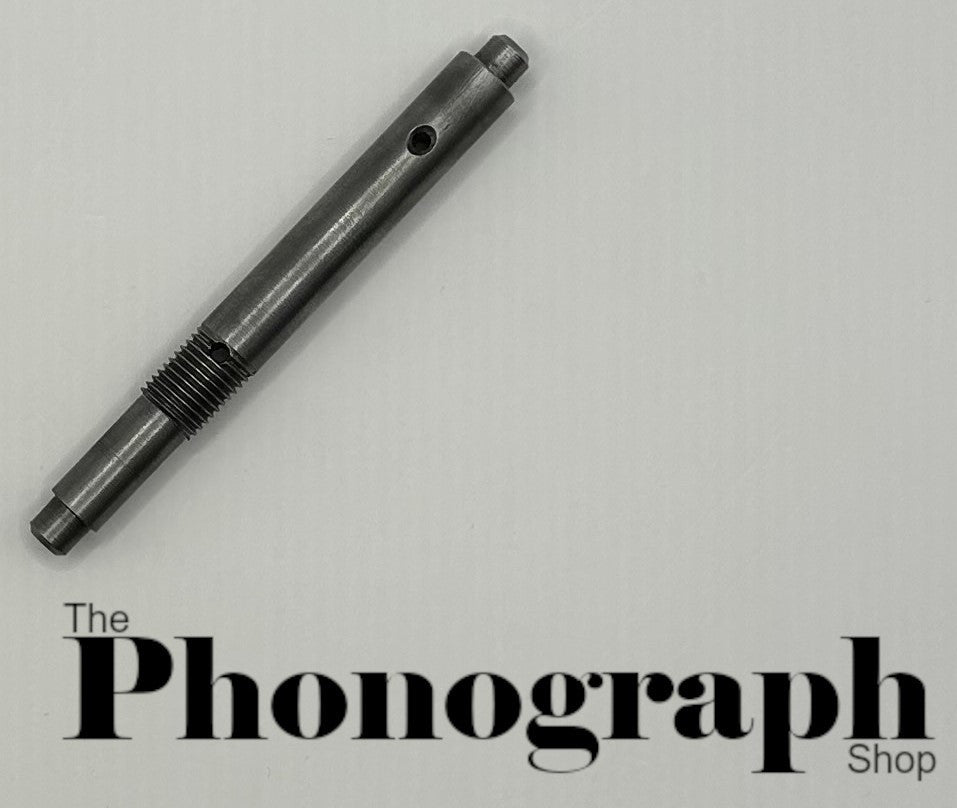

Heineman Intermediate Winding Shaft for New Style #77 Motor (S453) "Certified Original"

WND-INT-SHFT-HMN-S453-O

Regular price $11.99 USD
Regular price Sale price $11.99 USD
Sale Sold out

Intermediate Winding Shaft for:

These are original (used) parts and probably contain characteristics as such. Expect scratches, dullness, dents, dings, anything becoming a part over 100 years old. We make every effort to ensure they are functioning as expected and professionally clean for a no hassle installation.

#77 (New Style)

Dimensions

Length Overall - ~3 5/64"
Diameter of Shaft - 3/8"
Length of End Bearings - 7/32"
Diameter of End Bearings - 1/4"
Diameter of Pin Holes - 3/32"
Diameter of Lower Shaft - 5/32"
Threads - 3/8-24 (Fine)
Material - Steel
